YASKAWA AR700 for arc welders 8kg Payload 727mm arm welding robot

Yaskawa Robot MOTOMAN-AR700 In pursuit of high productivity, the birth of a new type of robot can simplify the process

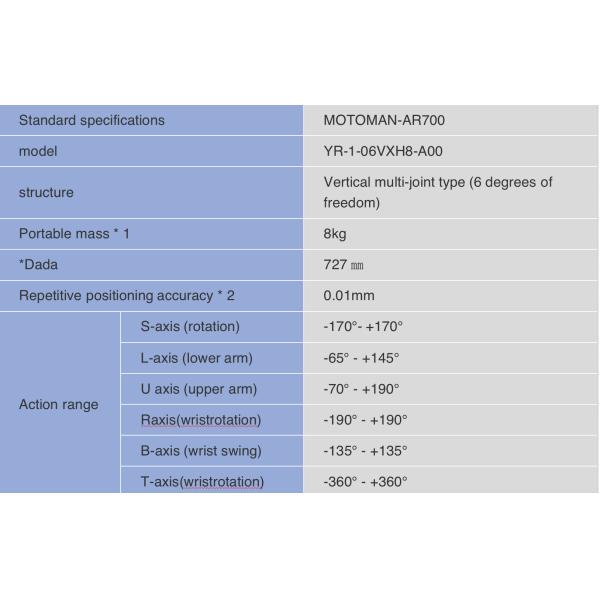

6-axis vertical multi-joint type

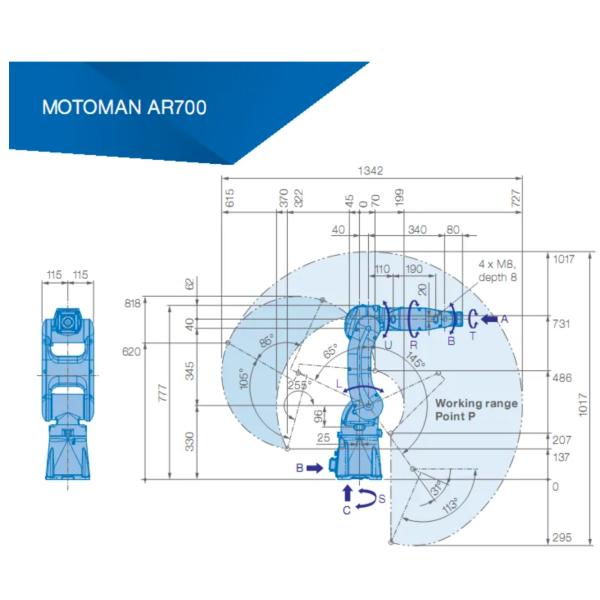

Load: 8KG Action range: 727mm

Control cabinet: YRC1000 Purpose: arc welding, laser processing, handling, other

characteristic:
The portable weight is 8KG, and it can carry various servo welding guns and sensors. Through high-speed action, it can reduce the beat
Designed to reduce the interference between the arm and peripheral equipment, suitable for small parts welding

AR700 Introduction:

The MOTOMAN AR700 is a compact high-speed 6-axis robot which provides accurate performance to achieve optimal results in extremely difficult conditions and especially for the high demands of arc welding applications.

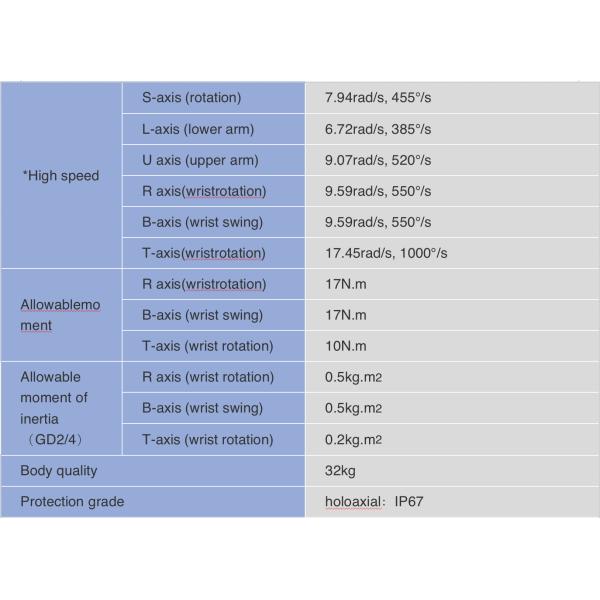

With a payload of up to 8 kg and a working range of 700 mm, this robot enables welding of a broad variety of small workpieces with high quality results. The applicable inertia and axis speeds have been significantly raised, which leads to a "best in class”performance, speed and acceleration.

The slim, straight and symmetrical arm design minimizes interference with peripherals even in small workspaces. The MOTOMAN AR700 is easy to clean and well protected (by protection class IP67) against dust or coolants. Cable routing is possible from the side of the robot socket or from the bottom through the base plate (option). This enables an easy and space-saving integration into its environment.
